FAQ Section

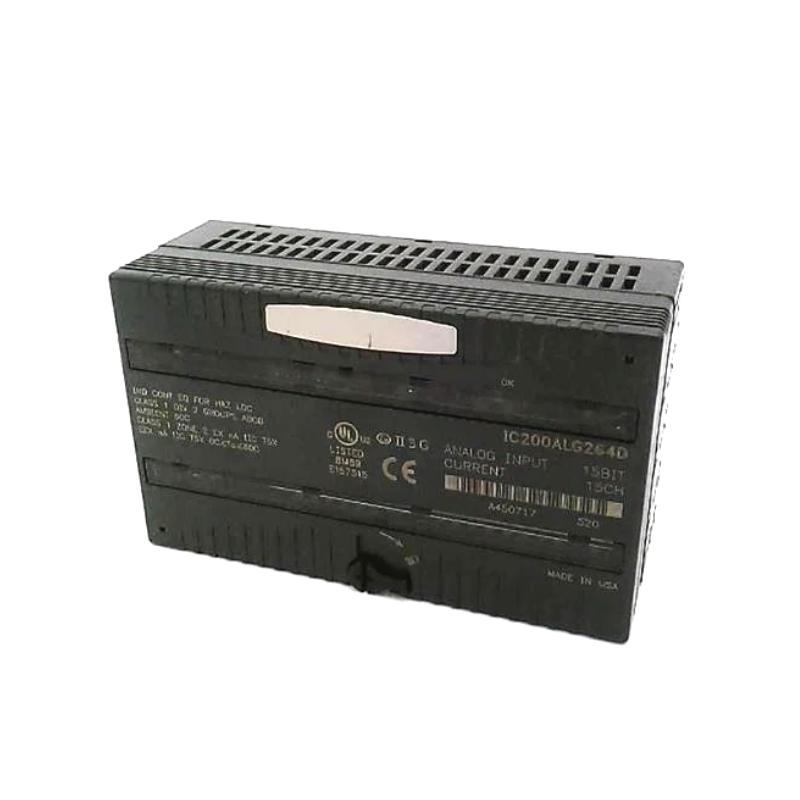

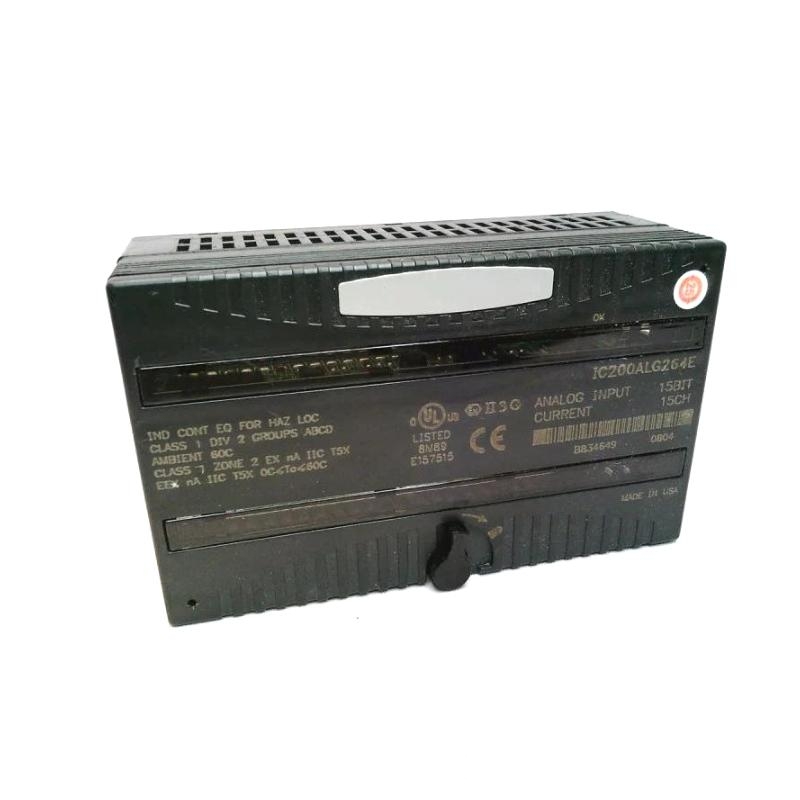

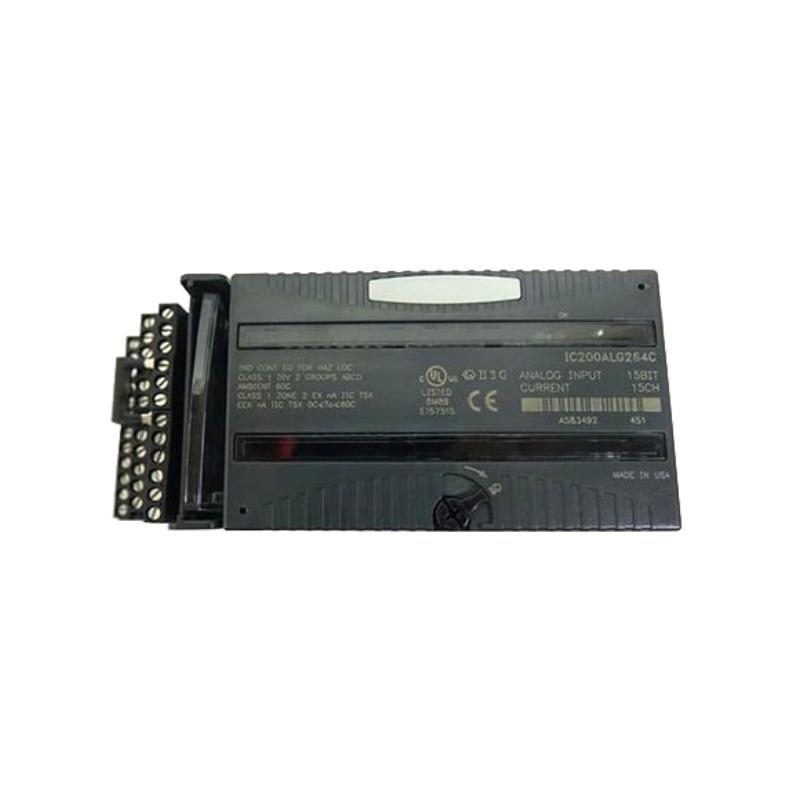

Q1: What is the GE IC200ALG264L used for?
A1: The GE IC200ALG264L is an analog input module used to convert analog signals from sensors and other field devices into digital data that can be processed by a control system.

Q2: How many inputs does the IC200ALG264L have?
A2: The module has 8 analog inputs, capable of handling both differential and single-ended signals.

Q3: What is the accuracy of the IC200ALG264L?
A3: The module has an accuracy of ±0.1% FS (Full Scale), ensuring precise measurements.

Q4: What input voltage does the IC200ALG264L require?
A4: The module operates on a 24 V DC input voltage.

Q5: What input signal ranges are supported by this module?
A5: The IC200ALG264L supports 0-10V and 4-20mA input signal ranges.

Q6: What is the resolution of the module?
A6: The module provides 12-bit resolution for high precision.

Q7: How fast does the module process each signal?
A7: The IC200ALG264L processes each signal in 10 ms per channel, making it suitable for real-time control.

Q8: What is the operating temperature range?
A8: The module operates within a temperature range of -20°C to +60°C.

Q9: Is the IC200ALG264L compatible with other GE VersaMax modules?
A9: Yes, it is fully compatible with other GE VersaMax modules, allowing for easy integration into modular automation systems.

Q10: How is the module mounted?
A10: The IC200ALG264L is designed for DIN rail mounting, a common standard in industrial control systems.
