FAQs (Frequently Asked Questions)

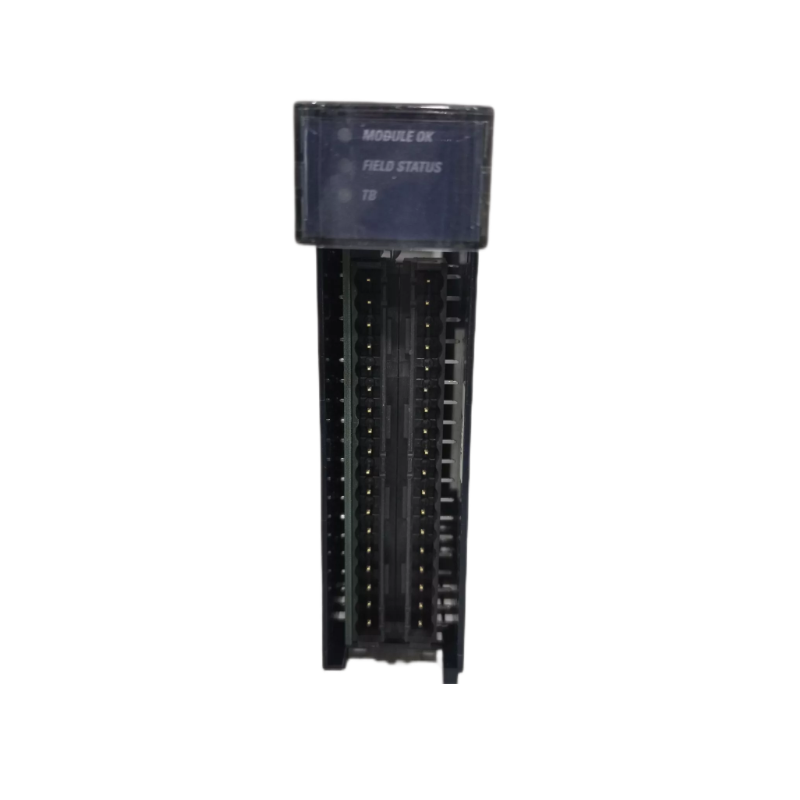

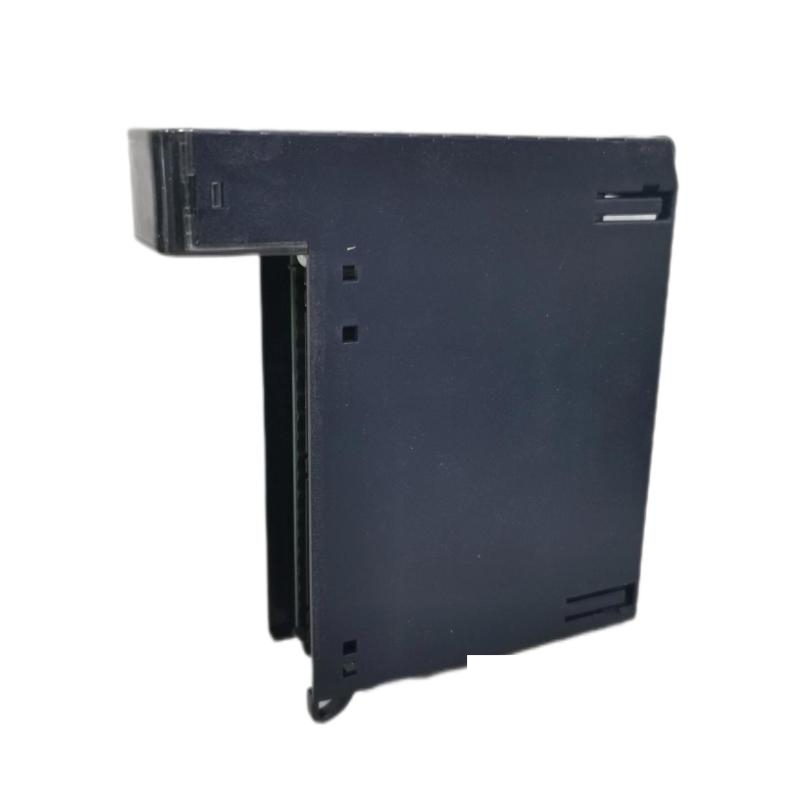

Q1: What is the purpose of the GE IC695ALG106 module?

A1: The GE IC695ALG106 is used to convert and isolate analog signals in industrial control systems, providing accurate measurements for a variety of process control and automation applications.

Q2: What is the input range supported by the IC695ALG106?

A2: The module supports multiple input types, including 0-10V, 4-20mA, and other common industrial signal types.

Q3: How many channels does the IC695ALG106 have?

A3: The IC695ALG106 has 6 channels, allowing it to handle multiple analog inputs simultaneously.

Q4: Can the GE IC695ALG106 be used in hazardous environments?

A4: The module is designed for industrial environments, but it is important to check the specific environmental certifications and operating conditions before using it in hazardous areas.

Q5: How does the isolation benefit the module?

A5: The isolation per channel protects the system from noise and ground loops, ensuring accurate and stable signal processing.

Q6: What is the accuracy of the IC695ALG106 module?

A6: The IC695ALG106 offers an accuracy of ±0.1% of the full scale, providing reliable and precise data acquisition.

Q7: Is the IC695ALG106 compatible with other PLC systems?

A7: The IC695ALG106 is designed specifically for use with GE RX3i series PLCs, and may not be directly compatible with other systems.

Q8: What is the weight and size of the IC695ALG106 module?

A8: The module has dimensions of 34 x 140 x 145 mm and weighs 0.25 kg.

Q9: Can the IC695ALG106 handle high-speed signals?

A9: The module is designed for standard industrial analog signals and may not be suitable for extremely high-speed or high-frequency signals.

Q10: What is the operating temperature range for the IC695ALG106?

A10: The GE IC695ALG106 operates within a temperature range of -20°C to 60°C, making it suitable for most industrial environments.
