Frequently Asked Questions (FAQ)

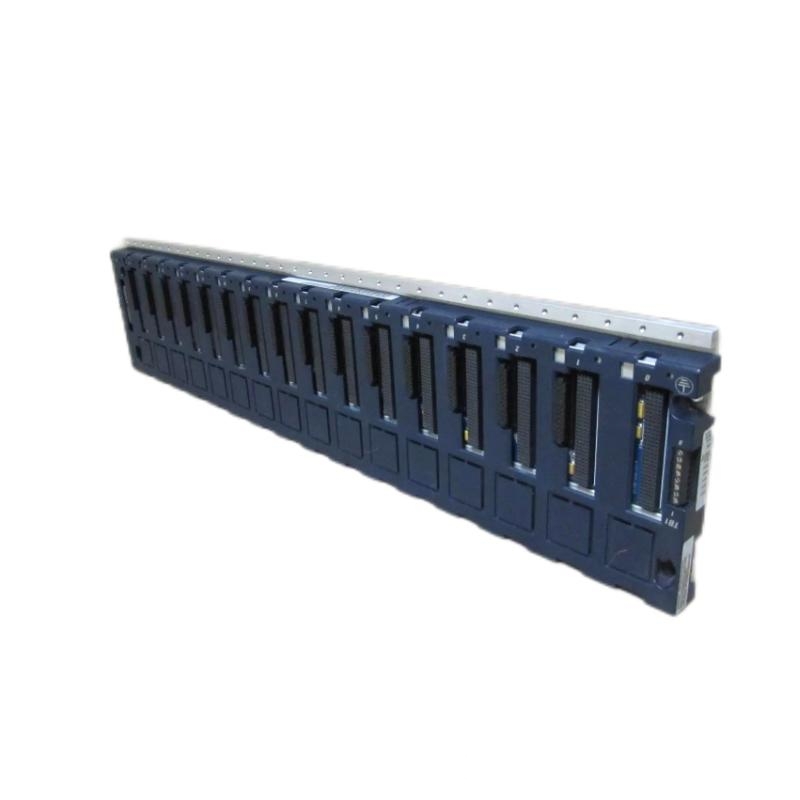

Q1: What is the main purpose of the GE IC695CHS016-CA 16-Slot Backplane?
A1: The IC695CHS016-CA backplane serves as the main communication backbone for the RX3i PLC system, connecting various modules like I/O modules and communication modules, and ensuring reliable data exchange.

Q2: How many modules can the IC695CHS016-CA support?
A2: The backplane can support up to 16 modules in the RX3i system.

Q3: What are the dimensions of the IC695CHS016-CA?
A3: The backplane measures 141.48 x 601.98 x 147.32 mm.

Q4: Is the IC695CHS016-CA suitable for use in high-temperature environments?
A4: The IC695CHS016-CA operates within a temperature range of 0°C to 60°C, making it suitable for most industrial environments.

Q5: What is the weight of the IC695CHS016-CA backplane?
A5: The weight of the backplane is 2.06 kg.

Q6: Can this backplane be used with other GE PLC systems?
A6: No, this backplane is designed specifically for the RX3i series of GE PLCs.

Q7: How is the IC695CHS016-CA mounted?
A7: The IC695CHS016-CA backplane is rack-mounted, allowing for easy installation and maintenance.

Q8: What is the power consumption of the IC695CHS016-CA?
A8: The IC695CHS016-CA has a typical power consumption of 10W.

Q9: Can I expand my system beyond 16 modules using this backplane?
A9: No, the IC695CHS016-CA supports up to 16 modules. For more slots, you would need a different backplane, such as the IC695CHS024 (24-slot version).

Q10: Is the IC695CHS016-CA suitable for outdoor use?
A10: No, the backplane has an IP20 rating, meaning it is only suitable for indoor use and should be kept away from harsh environmental conditions like moisture and dust.
