Frequently Asked Questions (FAQ)

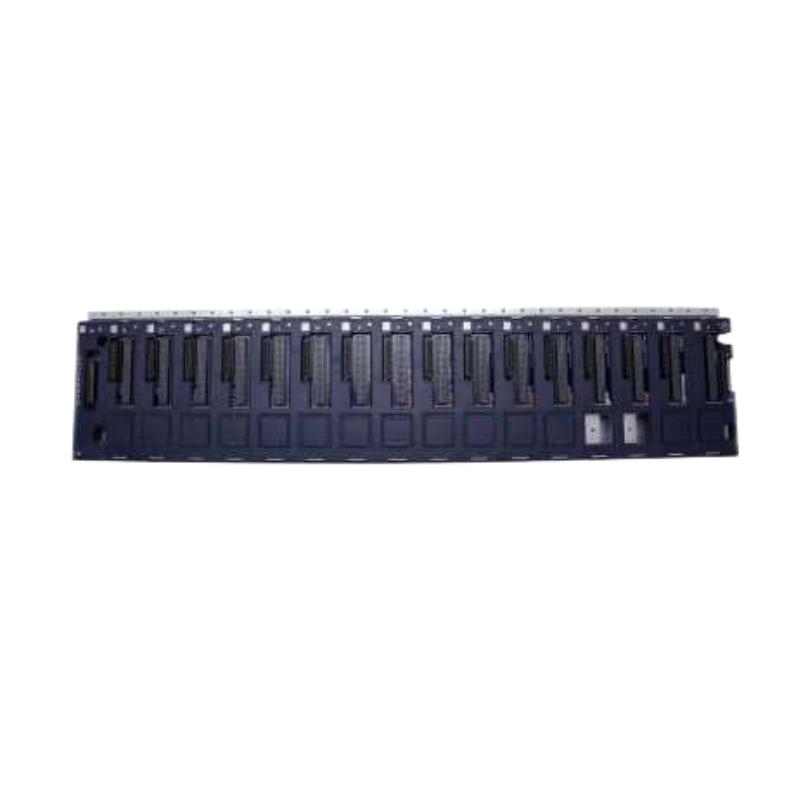

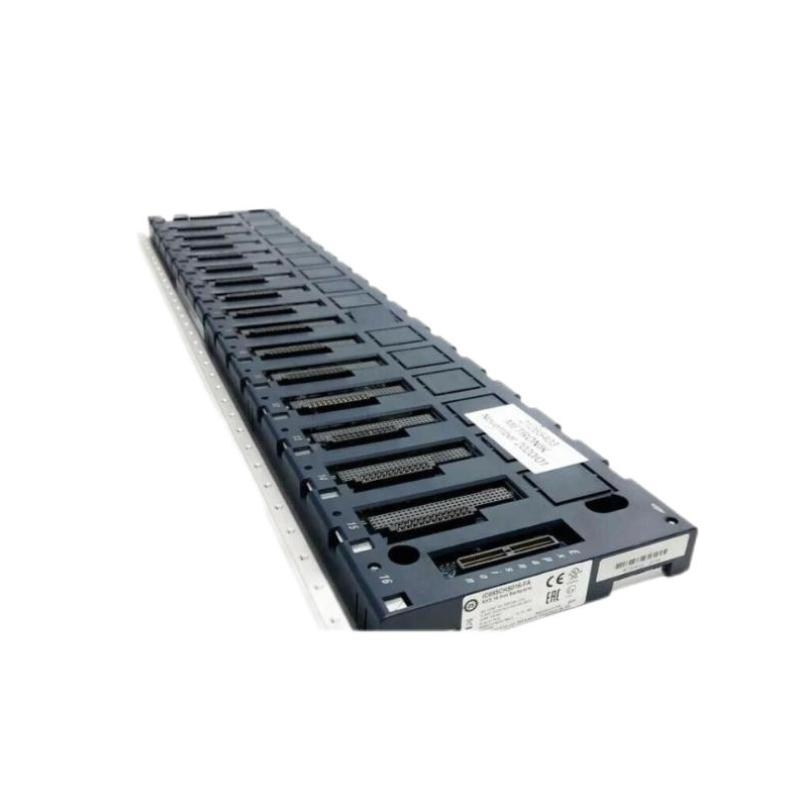

Q1: What is the function of the GE IC695CHS016-DA backplane?
A1: The GE IC695CHS016-DA is a 16-slot backplane that serves as a central hub for connecting various modules in the RX3i control system. It facilitates power distribution and data communication between modules.

Q2: How many slots does this backplane support?
A2: The IC695CHS016-DA supports up to 16 slots for installing various control modules in the RX3i system.

Q3: What is the maximum operating temperature for this backplane?
A3: The IC695CHS016-DA is designed to operate in temperatures ranging from -25°C to 60°C.

Q4: What is the weight of the IC695CHS016-DA backplane?
A4: The weight of this backplane is 2.06 kg.

Q5: What type of modules can be used with this backplane?
A5: This backplane is compatible with various RX3i modules, including CPU modules, power supplies, digital I/O modules, and analog I/O modules.

Q6: Is the GE IC695CHS016-DA suitable for outdoor use?
A6: The IC695CHS016-DA is designed for industrial environments and should be used in controlled environments. It is not rated for direct outdoor use without additional protection.

Q7: How is the backplane mounted?
A7: The IC695CHS016-DA can be mounted in a standard 19-inch rack or panel mount.

Q8: Can the IC695CHS016-DA be expanded?
A8: Yes, this backplane can be integrated with additional backplanes or expanded through other RX3i modules to meet larger system requirements.

Q9: Does this backplane support hot swapping of modules?
A9: Yes, the RX3i system, including the IC695CHS016-DA, supports hot swapping for most modules, allowing for maintenance without system shutdown.

Q10: What certifications does this backplane have?
A10: The IC695CHS016-DA is CE, UL, and CSA certified, ensuring compliance with international safety standards.
