GE IC695ETM001-KAAA Ethernet Interface Module Product Introduction The GE IC695ETM001-KAAA is a high-performance Ethernet Interface Module (EIM) designed for use in the RX3i PACSystems series. This modu……

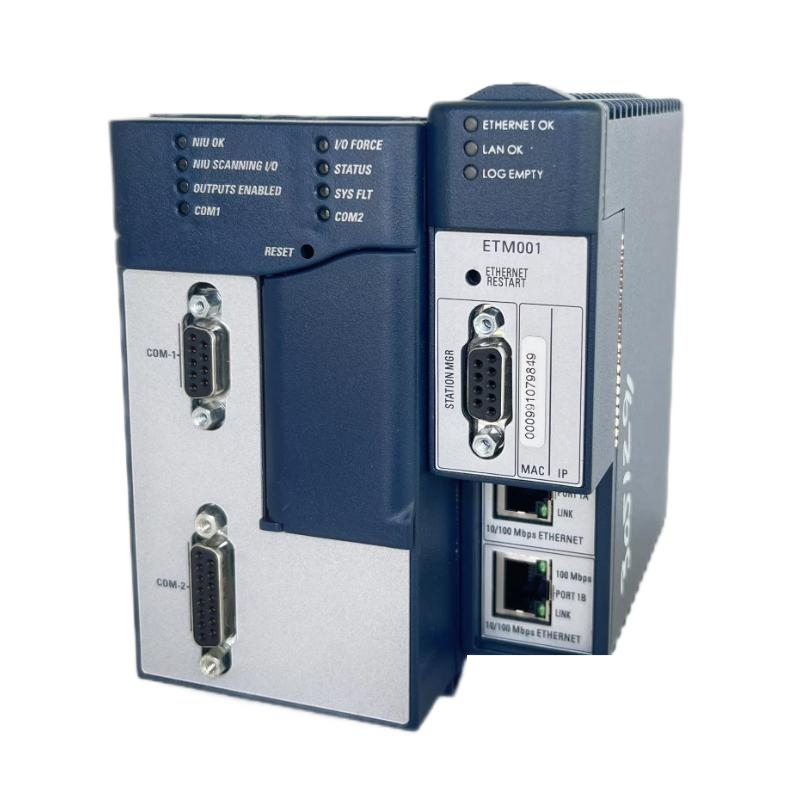

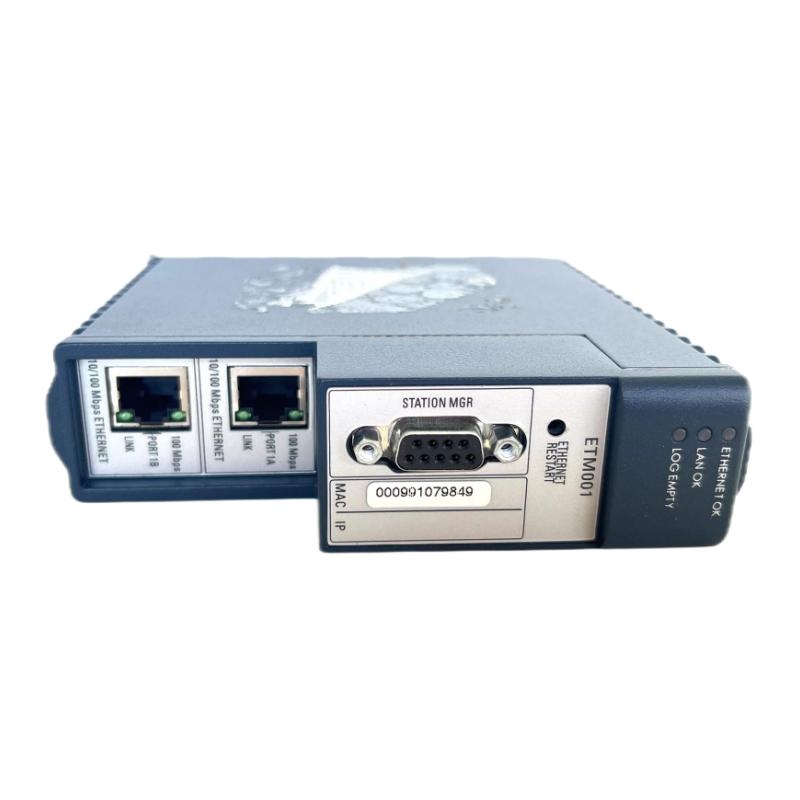

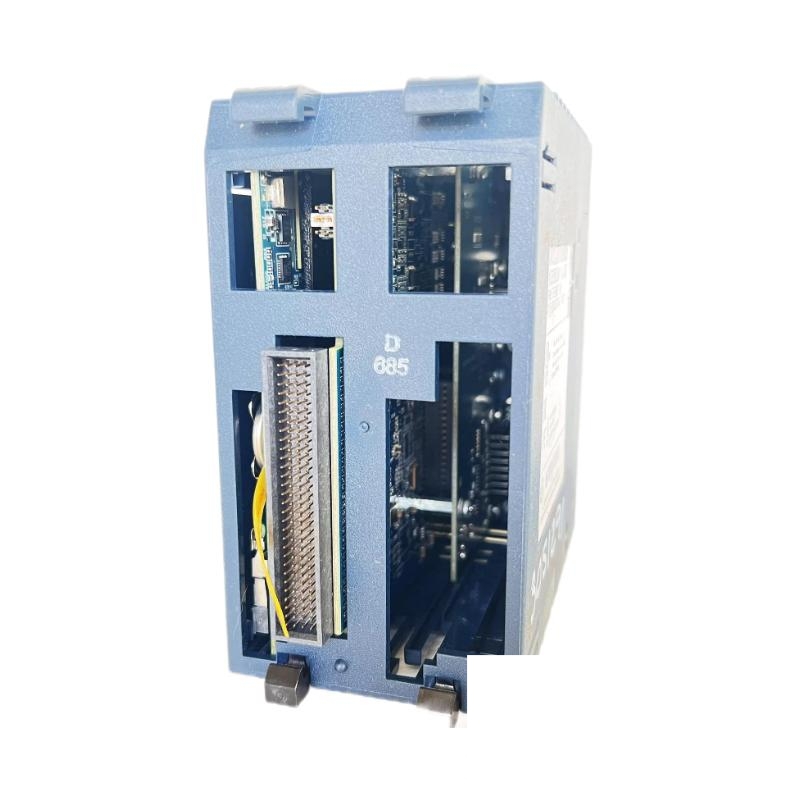

GE IC695ETM001-KAAA Ethernet Interface Module RX3i PACSystems series

Manufacturer: GE
Product Number: IC695ETM001-KAAA
Product Type: Ethernet Interface Module
Origin: USA
Dimensions: 132 x 50.8 x 70 mm
Weight: 0.226kg
Shipping Port:Xiamen, China
Condition:New & In Stock
Payment Methods:T/T, PayPal, Western Union
Warranty:1 Year
Lead Time:1-3 Working Days
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:24-Hour Service
Certificate:COO
Views:225

Request Quote

Our advantage

GE IC695ETM001-KAAA Ethernet Interface Module RX3i PACSystems series

Global Logistics

We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.

Brand new and original

Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.

24-hour service

We provide 7*24 hours service to our customers. We will be there whenever you need us.

Price advantage

All our products are priced very favorably because we have our own warehouse and supply.

FAQs for the GE IC695ETM001-KAAA

Q1: What is the primary function of the IC695ETM001-KAAA?
A1: It serves as an Ethernet communication interface for the RX3i PACSystems, enabling high-speed industrial networking.

Q2: How many Ethernet ports does this module have?
A2: The IC695ETM001-KAAA features two RJ-45 Ethernet ports with 10/100 Mbps connectivity.

Q3: What network protocols does this module support?
A3: It supports Modbus TCP, SRTP (Service Request Transport Protocol), and EGD (Ethernet Global Data).

Q4: Can the IP address be dynamically assigned?
A4: Yes, the module supports both Static and DHCP-assigned IP addresses.

Q5: What is the maximum number of EGD exchanges?
A5: The IC695ETM001-KAAA supports up to 256 Ethernet Global Data (EGD) exchanges.

Q6: Is this module compatible with PROFINET?
A6: No, for PROFINET communication, you need a separate PROFINET Controller Module (IC695PNC001).

Q7: How can I check the module’s status?
A7: The module features LED indicators for link status, activity, and diagnostics.

Q8: What is the operating temperature range?
A8: The module operates within a temperature range of 0°C to 60°C.

Q9: How is the module installed?
A9: It is rack-mounted within an RX3i system using a backplane slot.

Q10: Does this module require an external power supply?
A10: No, it draws power from the RX3i backplane at 3.3V DC, 0.75A.
