FAQs:

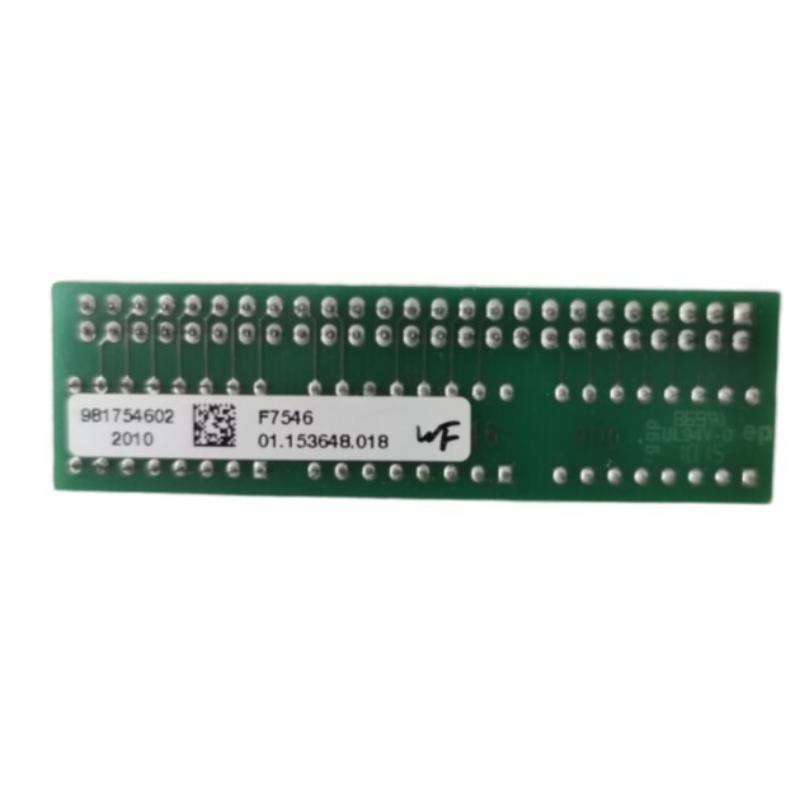

Q1: What is the primary function of the HIMA F7546 I/O Bus Coupling Module?
A1: The F7546 module serves as a communication bridge between I/O devices and control systems, enabling efficient data transmission and integration in industrial automation systems.

Q2: What communication protocol does the F7546 use?
A2: The F7546 supports the Profibus DP communication protocol, which is widely used in industrial automation systems.

Q3: What is the I/O configuration of the F7546?
A3: The F7546 module provides 16 digital inputs and 16 digital outputs for integration with various I/O devices.

Q4: How is the F7546 mounted?
A4: The module can be mounted on a DIN rail for easy installation and secure positioning within control panels.

Q5: What is the operating temperature range of the F7546?
A5: The module operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.

Q6: Does the F7546 module support remote I/O systems?
A6: Yes, the F7546 can be used in distributed automation systems, allowing remote I/O devices to be integrated into the control network.

Q7: How does the F7546 module ensure system reliability?
A7: The F7546 is designed for high availability and fault tolerance, ensuring that the system remains operational even in the event of faults.

Q8: What is the protection class of the F7546?
A8: The module has an IP20 protection class, meaning it is protected against dust and physical contact but should be installed in controlled environments.

Q9: How does the LED status indication work on the F7546?
A9: The module is equipped with LED indicators that provide real-time feedback on the operational status of the system, helping with diagnostics and maintenance.

Q10: What is the weight of the F7546 module?
A10: The F7546 weighs 0.56 kg, making it lightweight and easy to handle during installation.
