Frequently Asked Questions (FAQ)

Q1: What safety certifications does the F8650X meet?
A1: It is certified to SIL 3 (IEC 61508) and Category 4 (EN 954-1) for functional safety.

Q2: How many CPUs are inside?
A2: The module includes dual Intel 386EX processors with full synchronization for redundancy.

Q3: What memory does it include?
A3: It provides 1 MB OS flash, 1 MB user flash, and 1 MB SRAM.

Q4: How is diagnostic data accessed?

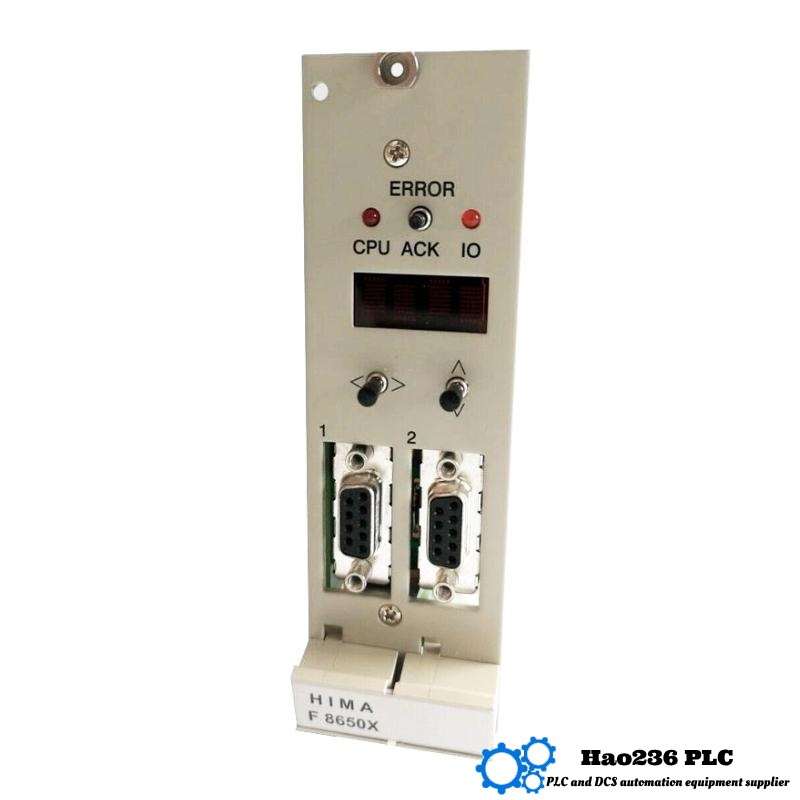

A4: Via the front-panel alphanumeric display, LEDs, and toggle/reset controls.

Q5: Which communication protocols does it support?
A5: It supports Safe Ethernet (safeELOP-II) and isolated RS-485 for field integration.

Q6: Is it hot-swappable?
A6: Yes, it can be inserted or removed during operation without requiring power down.

Q7: What is the operating temperature range?
A7: It functions reliably from –40 °C to +70 °C.

Q8: How long does the battery backup last?
A8: Up to 1000 days at 25 °C and 200 days at 60 °C.

Q9: What is the watchdog output?
A9: A 24 V, 500 mA short-circuit protected output for safe-tripping.

Q10: Can it scale with other HIMA modules?
A10: Yes. HIQuad supports modular rack expansion with interconnect and IO modules docked alongside.
