FAQs

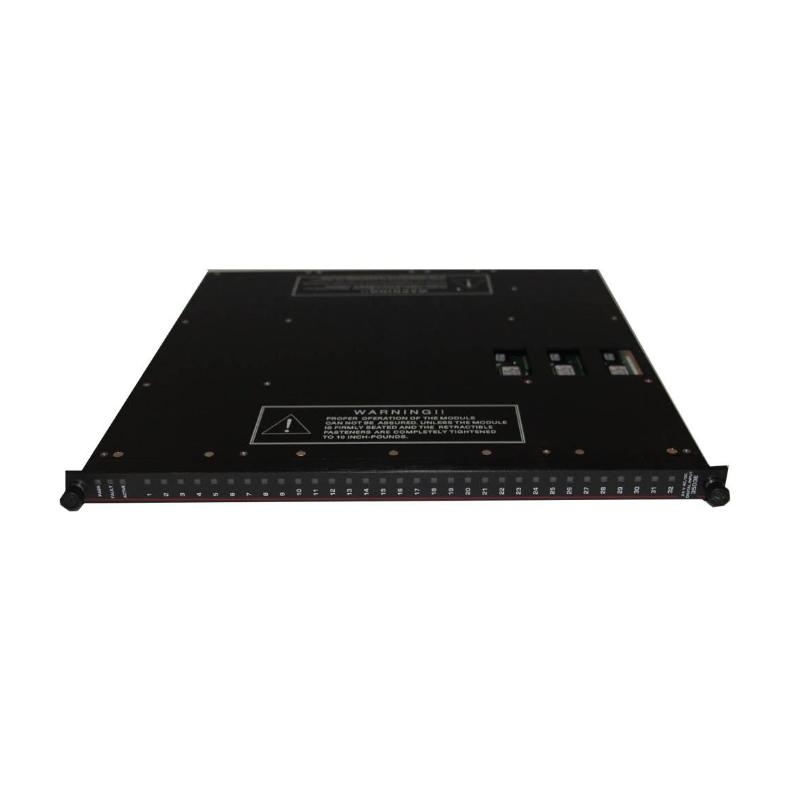

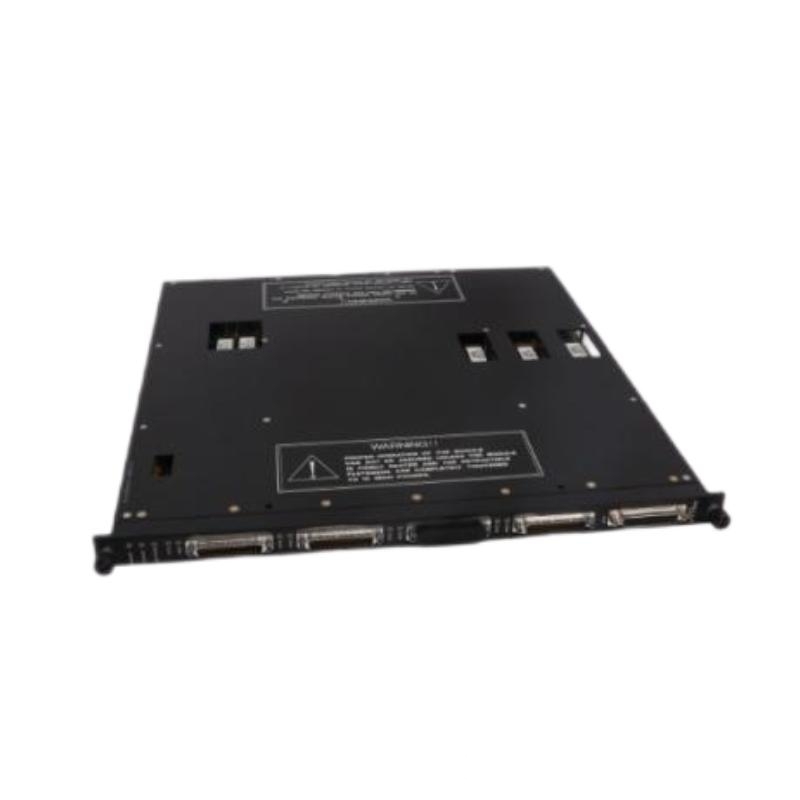

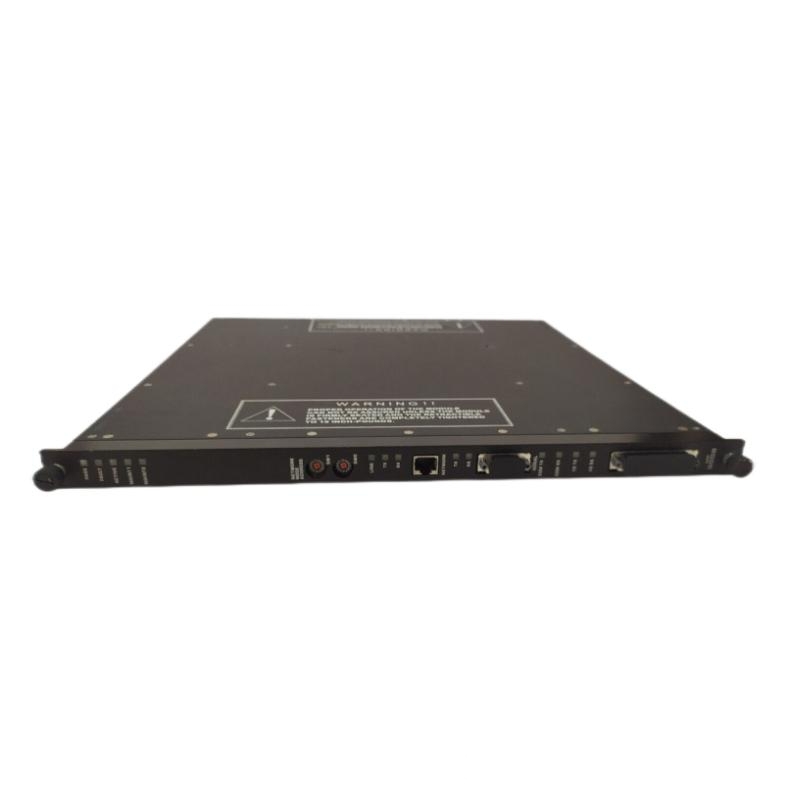

Q1: What is the main purpose of the Triconex 3703E?
A1: The Triconex 3703E is an isolated analog input module that provides reliable and precise measurement of various industrial parameters, such as temperature, pressure, and flow, while ensuring complete isolation between input channels.

Q2: What type of signals can the 3703E process?
A2: The module can process 4-20 mA, 0-10 V, and RTD (resistance-based temperature sensor) signals, making it versatile for different sensor types.

Q3: How many channels does the Triconex 3703E support?
A3: The 3703E supports 8 analog input channels, providing flexibility for complex monitoring needs.

Q4: What is the power supply requirement for the 3703E?
A4: The 3703E operates with a 24 V DC power supply, which is standard for industrial control modules.

Q5: What is the isolation capability of the 3703E?
A5: The 3703E provides 2500 V isolation between channels, which is essential for preventing electrical noise and ensuring signal integrity.

Q6: Can the 3703E be integrated with other Triconex modules?
A6: Yes, the Triconex 3703E is designed for easy integration with other Triconex modules and systems, providing a cohesive solution for complex control and safety applications.

Q7: What is the operating temperature range of the 3703E?
A7: The 3703E operates in a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.

Q8: What industries can benefit from using the Triconex 3703E?
A8: The 3703E is ideal for use in industries such as oil & gas, power generation, chemicals, and manufacturing, where accurate analog input and system isolation are required.

Q9: How is the 3703E mounted?
A9: The 3703E can be mounted on a DIN rail, which is the standard mounting solution for industrial control modules.

Q10: What is the weight and size of the 3703E?
A10: The 3703E weighs 3.2 kg and has dimensions of 490 x 490 x 68 mm, making it suitable for systems requiring robust yet compact components.
